Square 9W LED Panel Light Recessed SMD2835 External Driver 6W-24W

Model: BW-145x145-9W
Brand Name: Brightway
Power: 9W
luminous flux: 580lm
Input Voltage: AC100~265V
Color tempreature: 3000-6500K
Led type: SMD2835-45pcs
CRI: >80 Ra
Power Factor: >0.90
Product Size: 145*145*13mm Cut-out:130mm
Body Material: Nanometer 3.0mm+PS 1.2mm
Beam Angle: 120°


skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TProduction Capacity:100000pcs/month
Min. Order:1000 Piece/PiecesPacking:White box or Color box
Means of Transport:Ocean, AirDelivery Date:15-25days

----Specification of:Square 9W LED Panel Light Recessed SMD2835 External Driver 6W-24W

Item No.PowerLumenInstallationPower FactorLED QtyCRI       Volatge  Material    DescribeProduce    SizeCCTBeam Angle
Emitting SideLight Guide PlateDiffuser PlateAlu. Frame                      Color
BW-120*120-6W6W330lmRecessed PF >0.52835-30SMDRa >80AC100~265V                     4 SidesNanometer 3.0mmPS  1.2mmMatte    White120*120*13mm               Cut-out:ø100mm3000K                       4000K                    6000K120°
BW-145*145-9W9W580lmPF >0.902835-45SMD145*145*13mm               Cut-out:ø130mm
BW-170*170-12W12W840lm2835-60SMD170*170*13mm               Cut-out:ø150mm
BW-200*200-15W15W1000lm2835-75SMD200*200*13mm               Cut-out:ø180mm
BW-225*225-18W18W1350lm2835-90SMD225*225*13mm               Cut-out:ø200mm
BW-300*300-24W24W1800lm2835-120SMD300*300*13mm               Cut-out:ø280mm

Remark:                                                                                                     ① Special Design, Driver Outside with DC Connector                                                         ② Material: Heat Sink Alumium, PS                                                                         ③ 100% Pass CE-LVD  3000V  &  EMC                                                                         ④  Use Isolated  CE Driver

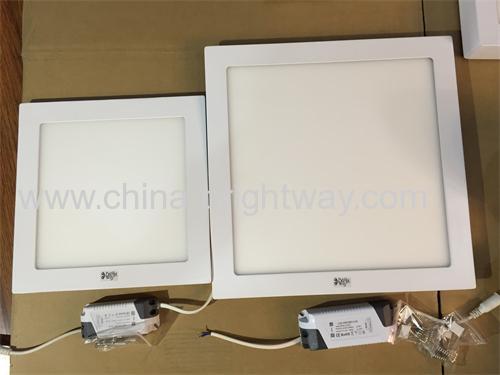

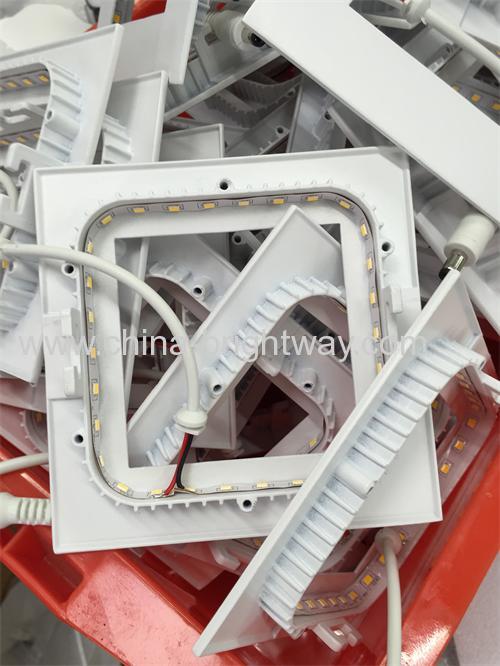

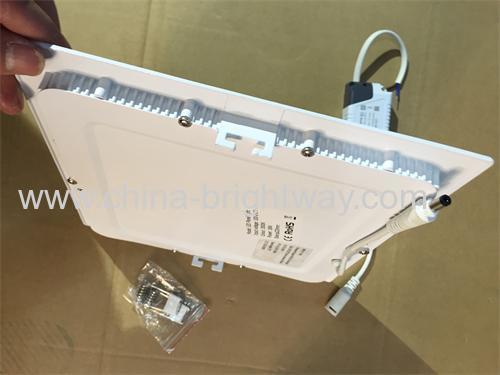

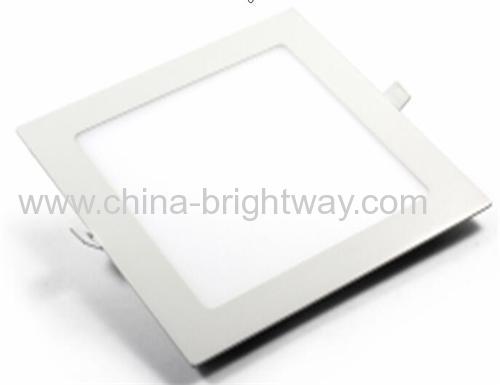

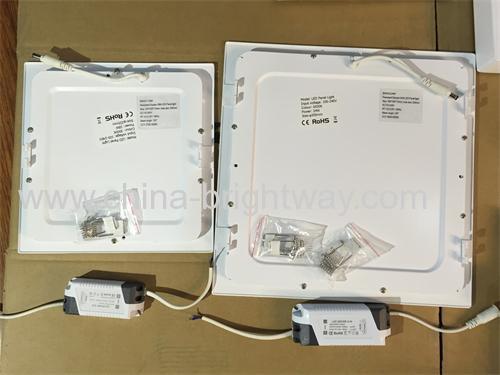

----Pictures of:Square 9W LED Panel Light Recessed SMD2835 External Driver 6W-24W
