SMD2835 8W Led PL Light G23 G24 650Lm Beam 180° 4-8W

Model: BW-H108-8W
Brand Name: Brightway
Power:: 8W
Work Voltage:: AC110/AC220-230V
LED Type:: SMD2835 16pcs
Luminous Flux:: 650 Lm
CCT:: 2700-6500K
CRI:: >80RA
PF:: >0.95
Body Material:: Aluminum body+PC cover
Product Size:: Φ27×234mm
Beam Angle:: 180°

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TPacking:Above 2000pcs make...
Min. Order:1000 Piece/PiecesDelivery Date:15-25days
Means of Transport:Ocean, Air


----Specification of:SMD2835 8W Led PL Light G23 G24 650Lm Beam 180°4-8W



Lamp BaseModel No.Power(W)Iuput   Voltage(V)LED TypeCRI (Ra)PFLuminous Flux(Lm)Beam AngleColor   TemperatureHousing MaterialDimmensions (mm)
G23/GX23/2G7BW-H104-4W4WAC110/AC220-230VSMD2835-6pcs>80>0.90300Lm180°2700-6500KPC+Alu φ27×135mm
G23/GX23/2G7BW-H105-5W5WAC110/AC220-230VSMD2835-8pcs>80>0.90400Lm180°2700-6500KPC+Alu φ27×165mm
G23/GX23/2G7BW-H106-6W6WAC110/AC220-230VSMD2835-12pcs>80>0.90500Lm180°2700-6500KPC+Alu φ27×180mm
G23/GX23/2G7BW-H107-7W7WAC110/AC220-230VSMD2835-14pcs>80>0.50550Lm180°2700-6500KPC+Alu φ27×180mm
G23/GX23/2G7BW-H108-8W8WAC110/AC220-230VSMD2835-16pcs>80>0.90650Lm180°2700-6500KPC+Alu φ27×234mm

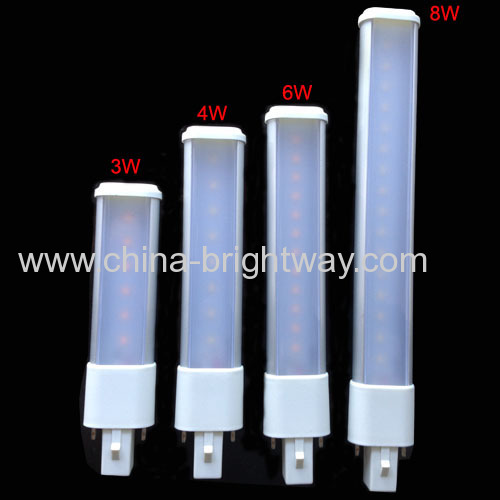

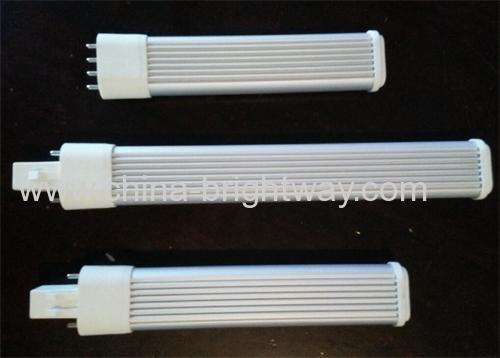

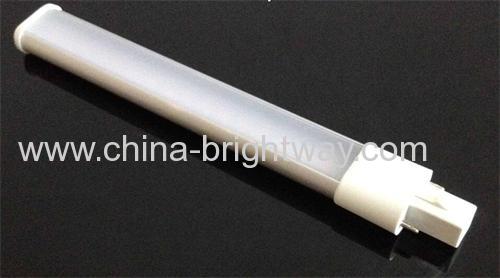

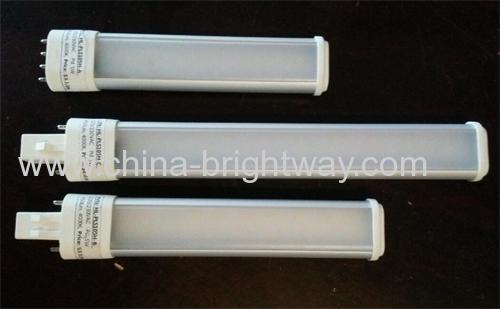

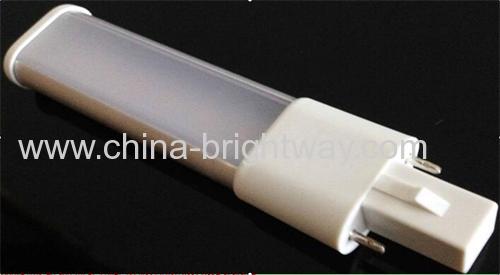

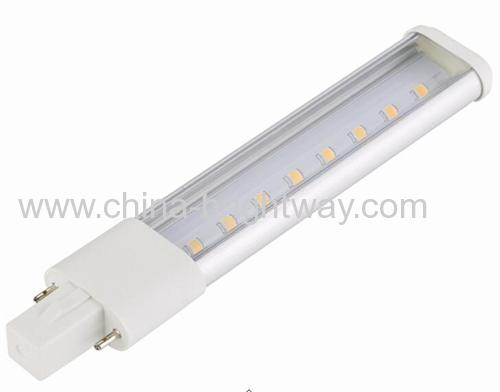

----Pictures of:SMD2835 8W Led PL Light G23 G24 650Lm Beam 180°4-8W




Selling points:


*Both Utility model patent and renewed design patent.Patent NO:CN201230054749.6)

*The LED Horizontal PL Lamp is a Great Energy Efficient Retro-Fit Replacement for the Fluorescent PL Lamp;

* The Module is Sealed Giving it an IP66 Rating and the Heat Sink is Manufactured from 6063 High Quality Aluminum;

* High end LED chips with LM80 report;  Beam angle :160° ;                                                                                                                                                       *Base:G23;GX23; 2G7;2GX7 for your choosen;                                                                                                                                                                             *Colour temperature:2800-3200k;4000-4500k;6000-6500k;

*Warranty: 3 years warranty;  Working Lifetim: more than 30000hours;                                                                                                                                                   *For big order can be discussed further,more quantity more discount!!



Category: 2G11 G24 G23 E27 E26 LED Plug Lights
