Round 9W LED Panel Light SMD2835 6W-24W Recessed Nanometer 3.0mm PS 1.2mm

Model: BW-145-9W
Brand Name: Brightway
Power: 9W
luminous flux: 580lm
Input Voltage: AC100~265V
Color tempreature: 3000-6500K
Led type: SMD2835-45pcs
CRI: >80 Ra
Power Factor: >0.90
Product Size: Φ145*13mm ,Cut-out:Φ130mm
Body Material: Nanometer 3.0mm+PS 1.2mm
Beam Angle: 120°


skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TProduction Capacity:100000pcs/month
Min. Order:1000 Piece/PiecesPacking:White box or Color box
Means of Transport:Ocean, AirDelivery Date:15-25days

----Specification of:Round 9W LED Panel Light SMD2835 6W-24W Recessed

Item No.PowerLumenPower FactorLED QtyCRI       Volatge(V)
Produce    SizeCCT(K)Beam Angle
Light Guide PlateDiffuser Plate
BW-ø120-6W6W330lmPF >0.52835-30SMDRa >80AC100~265V                     Nanometer 3.0mmPS  1.2mmø120*13mm               Cut-out:ø100mm3000K                       4000K                    6000K120°
BW-ø145-9W9W580lmPF >0.92835-45SMDø145*13mm               Cut-out:ø130mm
BW-ø170-12W12W840lm2835-60SMDø170*13mm               Cut-out:ø150mm
BW-ø200-15W15W1000lm2835-75SMDø200*13mm               Cut-out:ø180mm
BW-ø225-18W18W1350lm2835-90SMDø225*13mm               Cut-out:ø200mm
BW-ø300-24W24W1800lm2835-120SMDø300*13mm               Cut-out:ø280mm

Remark:                                                                                                     ① Special Design, Driver Outside with DC Connector                                                         ② Material: Heat Sink Alumium, PS                                                                         ③ 100% Pass CE-LVD  3000V  &  EMC                                                                         ④  Use Isolated  CE Driver

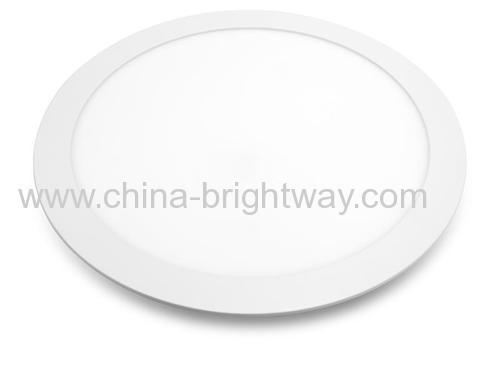

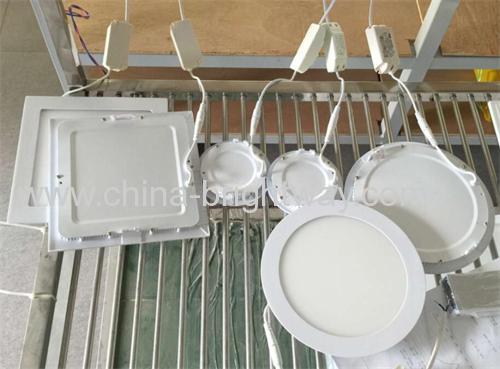

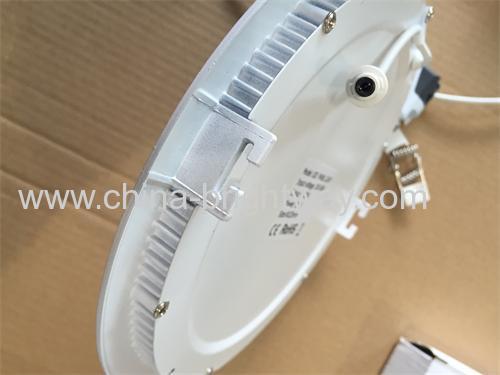

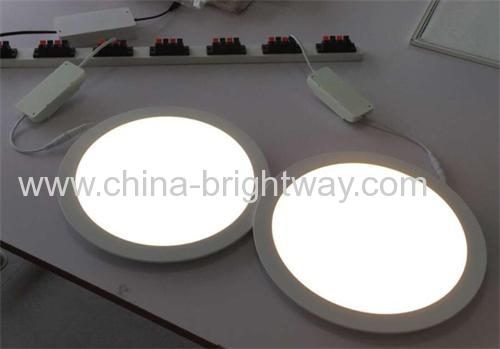

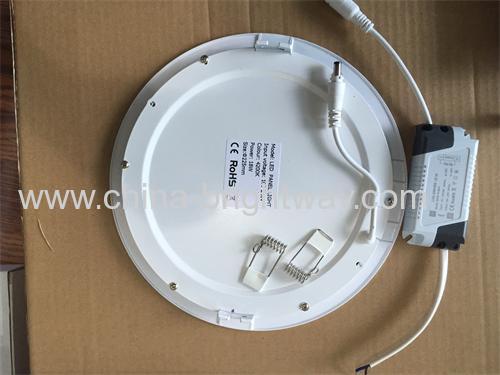

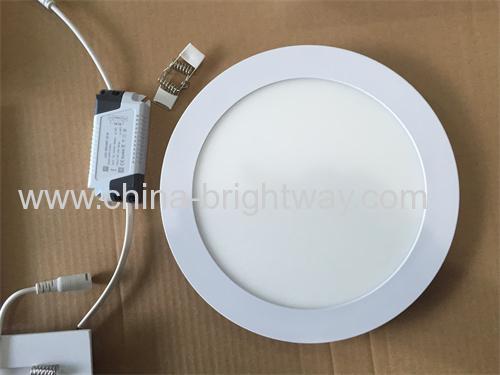

----Pictures of:Round 9W LED Panel Light SMD2835 6W-24W Recessed

--------Product feature:

1. Equipped with super bright LED as light source,it is powered by a low voltage constant current driver which is safe and energy saving and has a long life. The frame uses high quality cold rolled plate with plastic sprayding process. It is simple and elegant with ever lasting color.

2. High quality transparent PS board ensures soft and uniform light output,high lumen efficiency

3. Easy mounting,instant restart,no flicker,no noise,no glare,no lead,no mercury and other hazardous materials.


High CRI,High bright, Led Panel light is mainly applied to:hotel,confererence room, factories and offices,commercial,residential or public facilities,schools,hospitals,etc.
