E40 100W Led Corn Light SMD5730 Alu+PC Housing Beam 360°

Model: BW-Y5102
Brand Name: Brightway
Power:: 100W
Work Voltage:: AC85-265V
LED Type:: SMD5730 288pcs
Luminous Flux:: 10000 Lm
CCT:: 2700-6500K
CRI:: >80RA
PF:: >0.95
Body Material:: Aluminum body+PC cover
Product Size:: Φ120×334mm
Beam Angle:: 360°


skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TPacking:Above 2000pcs make...
Min. Order:1000 Piece/PiecesDelivery Date:15-25days
Means of Transport:Ocean, Air

----Specification of:E40 100W Led Corn Light SMD5730 Alu+PC Housing Beam 360°

Lamp BaseModel No.Power(W)Iuput Voltage(V)LED TypeCRI (Ra)PFLuminous Flux(Lm)Beam AngleColor   TemperatureHousing MaterialDimmensions (mm)
E40BW-Y510180WAC85-265VSMD5730-   240 PCS>80>0.958000 LM360°2700-6500KPC+AluΦ120×314mm
E40BW-Y5102100WAC85-265VSMD5730-   288 PCS>80>0.9510000 LM360°2700-6500KPC+AluΦ120×334mm
E40BW-Y5103120WAC85-265VSMD5730-   336 PCS>80>0.9512000 LM360°2700-6500KPC+AluΦ120×354mm

----Pictures of:E40 100W Led Corn Light SMD5730 Alu+PC Housing Beam 360°


• Description: 80W,100W,120W LED corn lamp

• Special designed for garden light and street light

• SAMSUNG LED,CRI(Ra) >80, high output efficiency up to about 105Lm/W

• Good heat dissipation,long lifes, instant on,no UV/IR radiation,no blinking,impact resistance

• Directly replace CFL lamp without refitting the original light.

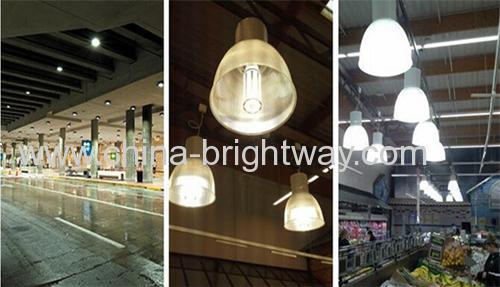

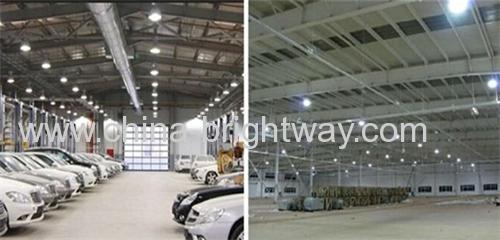

• Application:suitable for general lighting in such places as road(street light), parks, factories, markets,courtyard,office building,lobbies and for other commercial lighting usage.


• Directly replace energy-saving lamp without refitting the original light.

• When there is electronic ballast,must take it off at first and then install our LED lamp.Otherwise,the LED lamp won't work and maybe damaged.

• The lamp weight is more than 0.55kg,too heavy and should screw into the socket tightly.


HIGHLED warrants that this lamp will operate for a period of three (3) years from the date of delivery. If this lamp does not last for three years, please send your name and address, the returned bulb, register receipt and proof of purchase or contract to the address listed on our website, and HIGHLED will replace or repair your lamp. This limited warranty does not cover lamps subject to misuse, electrical current fluctuation, accident, neglect, or acts of God. This replacement is the sole warranty obligation of HIGHLED and is in lieu of all other warranties, express or implied, including any warranty of merchantability or fitness for a particular purpose. Liability for incidental and consequential damages are excluded.


  • Don't recommend for use in fully enclosed luminaires, the heat dissipation will be bad and reduce the lifespan.

  • The protection is less than IP64,not water proof lamp,Don't install or use it in a humid environment or place which has water drops.

  • The LED lamp output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LED with unaided eyes for more than a few second.


• These series lamps don't suitable for dimmer, electronic switches or remote controls

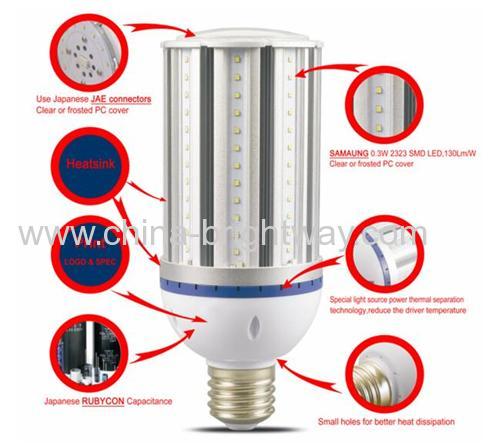

1. Use Japanese JAE connectors,heat resistance

2. Clear or frosted PC cover about LED,high light transmittance

3. SAMSUNG 0.3W 2323 SMD LED, 130Lm/w

4. Aluminium heatsink, good heat dissipation

5. Japanese RUBYCON Capacitance in the driver

6. With small holes under the base,better heat dissipation for the driver

7. Special light source power thermal separation technology (with holes),reduce the driver temperature

8. E26/E27/E39/E40 base available

Pring LOGO on the base  light), parks, factories, markets,courtyard,office building,lobbies and for other commercial lighting usage.
