----Specification of:Aluminium 15W Led Corn Light E27 1500Lm Beam 360°12W-24W
|Lamp Base||Model No.||Power(W)||Iuput Voltage(V)||LED Type||CRI (Ra)||PF||Luminous Flux(Lm)||Beam Angle||Color Temperature||Housing Material||Dimmensions (mm)|
|E27/E40||BW-Y2101||12W||AC85-265V||SMD2835- 70 PCS||>80||＞0.90||1200 LM||360°||2700-6500K||PC+Alu||Φ70×159mm|
|E27/E40||BW-Y2102||15W||AC85-265V||SMD2835- 84 PCS||>80||＞0.90||1500 LM||360°||2700-6500K||PC+Alu||Φ70×164.2mm|
|E27/E40||BW-Y2103||18W||AC85-265V||SMD2835- 98 PCS||>80||＞0.90||1800 LM||360°||2700-6500K||PC+Alu||Φ70×174.2mm|
|E27/E40||BW-Y2104||21W||AC85-265V||SMD2835- 126 PCS||>80||＞0.90||2100 LM||360°||2700-6500K||PC+Alu||Φ70×194.3mm|
|E27/E40||BW-Y2105||24W||AC85-265V||SMD2835- 140 PCS||>80||＞0.90||2400 LM||360°||2700-6500K||PC+Alu||Φ70×214.3mm|

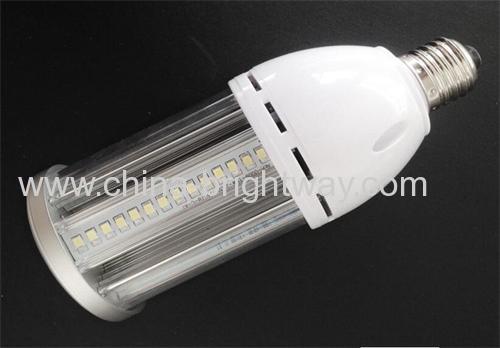

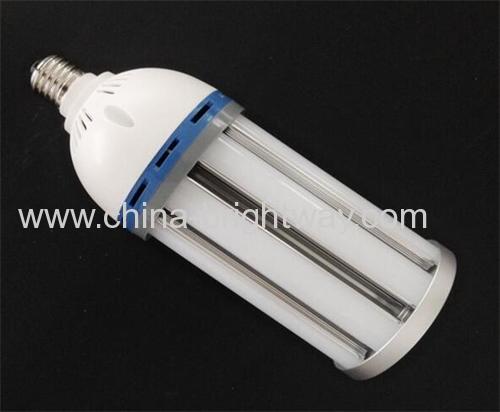

----Pictures of:Aluminium 15W Led Corn Light E27 1500Lm Beam 360°12W-24W
• Description: 12W,15W,18W,21W,24W LED corn lamp
• Special designed for garden light and street light
• SAMSUNG LED,CRI(Ra) >80, high output efficiency up to about 105Lm/W
• Good heat dissipation,long lifes, instant on,no UV/IR radiation,no blinking,impact resistance
• Directly replace CFL lamp without refitting the original light.
• Application:suitable for general lighting in such places as road(street light), parks, factories, markets,courtyard,office building,lobbies and for other commercial lighting usage.
• Directly replace energy-saving lamp without refitting the original light.
• When there is electronic ballast,must take it off at first and then install our LED lamp.Otherwise,the LED lamp won't work and maybe damaged.
• The lamp weight is more than 0.55kg,too heavy and should screw into the socket tightly.
■ LIMITED WARRANTY:
HIGHLED warrants that this lamp will operate for a period of three (3) years from the date of delivery. If this lamp does not last for three years, please send your name and address, the returned bulb, register receipt and proof of purchase or contract to the address listed on our website, and HIGHLED will replace or repair your lamp. This limited warranty does not cover lamps subject to misuse, electrical current fluctuation, accident, neglect, or acts of God. This replacement is the sole warranty obligation of HIGHLED and is in lieu of all other warranties, express or implied, including any warranty of merchantability or fitness for a particular purpose. Liability for incidental and consequential damages are excluded.
• Don't recommend for use in fully enclosed luminaires, the heat dissipation will be bad and reduce the lifespan.
• The protection is less than IP64,not water proof lamp,Don't install or use it in a humid environment or place which has water drops.
• The LED lamp output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LED with unaided eyes for more than a few second.
• These series lamps don't suitable for dimmer, electronic switches or remote controls
1. Use Japanese JAE connectors,heat resistance
2. Clear or frosted PC cover about LED,high light transmittance
3. SAMSUNG 0.3W 2323 SMD LED, 130Lm/w
4. Aluminium heatsink, good heat dissipation
5. Japanese RUBYCON Capacitance in the driver
6. With small holes under the base,better heat dissipation for the driver
7. Special light source power thermal separation technology (with holes),reduce the driver temperature
8. E26/E27/E39/E40 base available
Pring LOGO on the base light), parks, factories, markets,courtyard,office building,lobbies and for other commercial lighting usage.
