80W Aluminium LED Street Light IP65 Epistar COB 530*250*110mm

Model: BW-S-1080
Brand Name: Brightway
Power Consumption: 80W
Input Voltage: AC100-265V/DC12V/24V
Luminous Flux: 7200-8000LM
CCT: 3000-6500K
Led Source: Epistar-COB
Beam Angle: 120°
Waterproof: IP65
Material: Aluminium housing
Product Size:: 530*250*110mm/3kgs
PF: >0.95


skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TProduction Capacity:100000pcs/month
Min. Order:500 Piece/PiecesPacking:White box or Color box
Means of Transport:Ocean, AirDelivery Date:15-25days

-----Features of:80W Aluminium LED Street Light IP65 Epistar COB 530*250*110mm/3kgs

With aluminium plate design,heat dissipation fast and evenly

Angle for flexiable cover to choose: 120°

Input Voltage: AC100-265V/ AC/DC:12V/24V

PF>0.95, CRI>80Ra

Waterproof: IP65 protection level

CCT: 3000-6500K

-----Specification of:80W Aluminium LED Street Light IP65 Epistar COB 50-200W

Item No.Power(W)LED LumensInput voltageLED TypePFLighting Size(mm)/Net   weight(kgs)
BW-S-105050W4500-5000LM AC100-265V/DC12V/24V Epistar-COB>0.95530*250*110mm/3kgs
BW-S-108080W7200-8000LM AC100-265V/DC12V/24V Epistar-COB>0.95530*250*110mm/3kgs
BW-S-1100100W9000-10000LM AC100-265V/DC12V/24V Epistar-2 COB>0.95650*250*120mm/4kgs
BW-S-1120120W10800-12000LM AC100-265V/DC12V/24V Epistar-2 COB>0.95650*250*120mm/4kgs
BW-S-1150150W13500-15000LM AC100-265V/DC12V/24V Epistar-3 COB>0.95800*310*120mm/7kgs
BW-S-1180180W16200-18000LM AC100-265V/DC12V/24V Epistar-3 COB>0.95800*310*120mm/7.2kgs

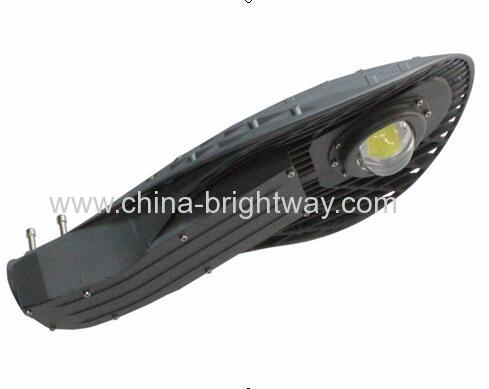

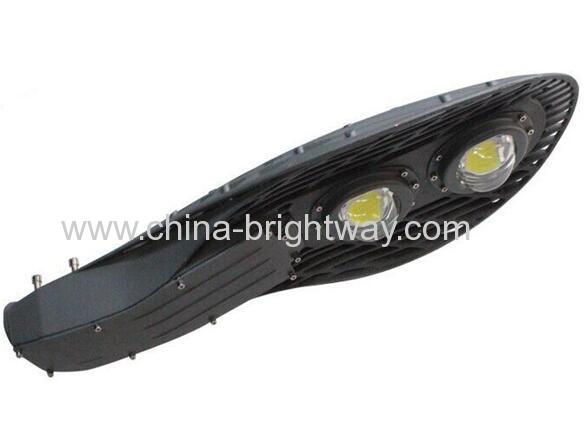

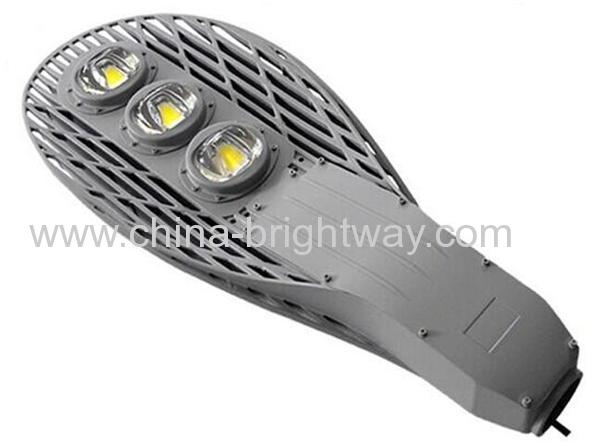

------Pictures of:80W Aluminium LED Street Light IP65 Epistar COB 50-200W

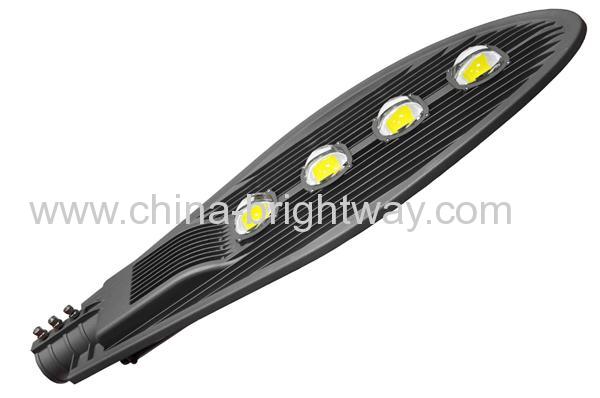

200W-4 COB LED

Application Pictures

Category: LED Street Light

Related Category: LED Flood Light  R7S led lamp for Floodlight  LED Tunnel Light  LED High Bay Light
