5W Led Down Light SMD2835 AC100-240V External Driver CE RoHS

Model: BW-DL-5W
Power:: 5W
Work Voltage:: AC100-240V
LED Type:: SMD2835 10pcs
Luminous Flux:: 420-450Lm
CCT:: 2700-6500K
CRI:: >80RA
PF:: >0.90
Body Material:: Aluminium+PMMA COVER

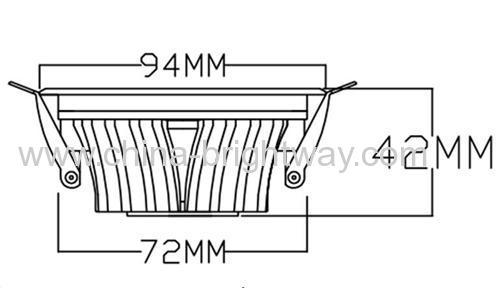

Product Size: φ94*42mm,hole cut:72mm
Beam Angle:: 120°

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TPacking:Above 2000pcs make...
Min. Order:1000 Piece/PiecesDelivery Date:15-25days
Means of Transport:Ocean, Air


----Specification of:5W Led Down Light SMD2835 AC100-240V External Driver CE RoHS


Item No.Power(W)Lumen(Lm)Voltage(V)LED TypePFCRI(Ra)CCTBeam AngleLamp Size(mm)
BW-DL-5W5W420-450LmAC100-240VSMD2835-10pcs>0.90>802700-6500K120°94*42mm,hole   cut:72mm
BW-DL-10W10W950-1000LmAC100-240VSMD2835-20pcs>0.90>802700-6500K120°110*42mm,          hole cut:94mm
BW-DL-15W15W1350-1500LmAC100-240VSMD2835-30pcs>0.90>802700-6500K120°135*50mm,          hole cut:114mm
BW-DL-20W20W1800-2000LmAC100-240VSMD2835-40pcs>0.90>802700-6500K120°195*60mm,          hole cut:164mm
BW-DL-30W30W2800-3000LmAC100-240VSMD2835-60pcs>0.90>802700-6500K120°225*66mm,          hole cut:195mm

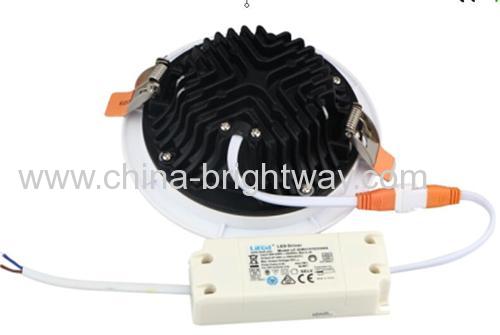

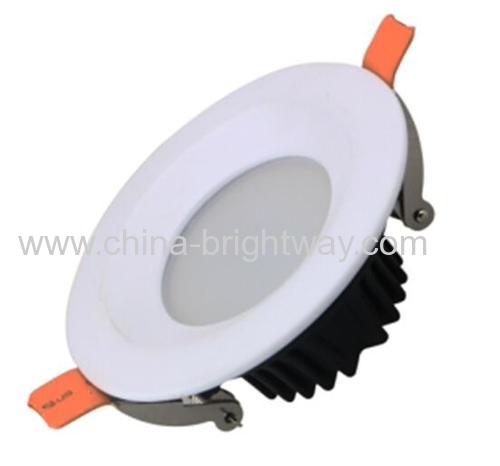

----Pictures of:5W Led Down Light SMD2835 AC100-240V External Driver CE RoHS




Category: 5W-30W Recessed LED Downlights
