|Payment & Shipping Terms||Supply Capacity|
|Payment Terms:||L/C, T/T||Packing:||Above 2000pcs make...|
|Min. Order:||1000 Piece/Pieces||Delivery Date:||15-25days|
|Means of Transport:||Ocean, Air|
----Specification of:27W Led Corn Lamp te replace 75W ESL Alu+PC SMD5730 E27 E40
|Lamp Base||Model No.||Power(W)||Iuput Voltage(V)||LED Type||CRI (Ra)||PF||Luminous Flux(Lm)||Beam Angle||Color Temperature||Housing Material||Dimmensions (mm)|
|E27/E40||BW-Y3101||17W||AC85-265V||SMD2835- 81 PCS||>80||＞0.95||1600 LM||360°||2700-6500K||PC+Alu||Φ93×196.5mm|
|E27/E40||BW-Y3102||22W||AC85-265V||SMD2835- 108 PCS||>80||＞0.95||2000 LM||360°||2700-6500K||PC+Alu||Φ93×221.5mm|
|E27/E40||BW-Y3104||27W||AC85-265V||SMD2835- 135 PCS||>80||＞0.95||2500 LM||360°||2700-6500K||PC+Alu||Φ93×246.5mm|
|E27/E40||BW-Y3103||32W||AC85-265V||SMD2835- 162 PCS||>80||＞0.95||2900 LM||360°||2700-6500K||PC+Alu||Φ93×271.5mm|
|E27/E40||BW-Y3105||27W||AC85-265V||SMD5730- 81 PCS||>80||＞0.95||2500 LM||360°||2700-6500K||PC+Alu||Φ93×196.5mm|
|E27/E40||BW-Y3106||36W||AC85-265V||SMD5730- 108 PCS||>80||＞0.95||3300 LM||360°||2700-6500K||PC+Alu||Φ93×221.5mm|
|E27/E40||BW-Y3107||45W||AC85-265V||SMD5730- 135 PCS||>80||＞0.95||4100 LM||360°||2700-6500K||PC+Alu||Φ93×246.5mm|
|E27/E40||BW-Y3108||54W||AC85-265V||SMD5730- 162 PCS||>80||＞0.95||4900 LM||360°||2700-6500K||PC+Alu||Φ93×271.5mm|

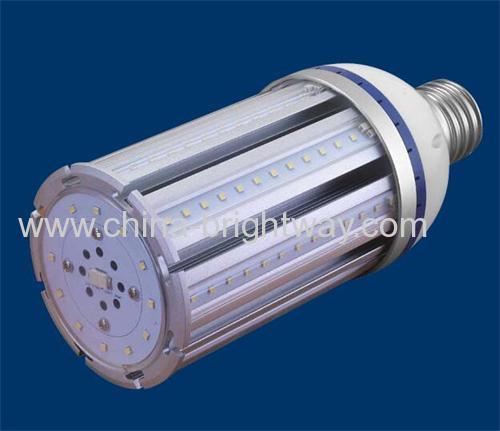

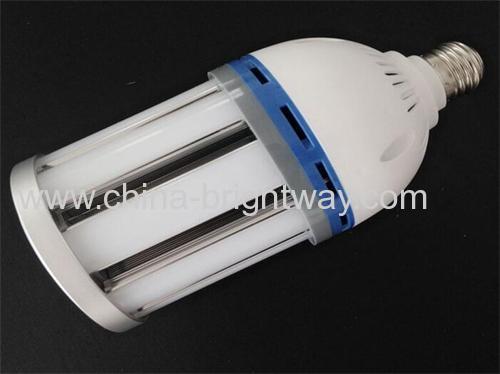

----Pictures of:27W Led Corn Lamp te replace 75W ESL Alu+PC SMD5730 E27 E40
• Description: 17W,22W,27W,32W,36W,45W,54W LED corn lamp
• Special designed for garden light and street light
• SAMSUNG LED,CRI(Ra) >80, high output efficiency up to about 105Lm/W
• Good heat dissipation,long lifes, instant on,no UV/IR radiation,no blinking,impact resistance
• Directly replace CFL lamp without refitting the original light.
• Application:suitable for general lighting in such places as road(street light), parks, factories, markets,courtyard,office building,lobbies and for other commercial lighting usage.
• Directly replace energy-saving lamp without refitting the original light.
• When there is electronic ballast,must take it off at first and then install our LED lamp.Otherwise,the LED lamp won't work and maybe damaged.
• The lamp weight is more than 0.55kg,too heavy and should screw into the socket tightly.
■ LIMITED WARRANTY:
HIGHLED warrants that this lamp will operate for a period of three (3) years from the date of delivery. If this lamp does not last for three years, please send your name and address, the returned bulb, register receipt and proof of purchase or contract to the address listed on our website, and HIGHLED will replace or repair your lamp. This limited warranty does not cover lamps subject to misuse, electrical current fluctuation, accident, neglect, or acts of God. This replacement is the sole warranty obligation of HIGHLED and is in lieu of all other warranties, express or implied, including any warranty of merchantability or fitness for a particular purpose. Liability for incidental and consequential damages are excluded.
• Don't recommend for use in fully enclosed luminaires, the heat dissipation will be bad and reduce the lifespan.
• The protection is less than IP64,not water proof lamp,Don't install or use it in a humid environment or place which has water drops.
• The LED lamp output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LED with unaided eyes for more than a few second.
• These series lamps don't suitable for dimmer, electronic switches or remote controls
1. Use Japanese JAE connectors,heat resistance
2. Clear or frosted PC cover about LED,high light transmittance
3. SAMSUNG 0.3W 2323 SMD LED, 130Lm/w
4. Aluminium heatsink, good heat dissipation
5. Japanese RUBYCON Capacitance in the driver
6. With small holes under the base,better heat dissipation for the driver
7. Special light source power thermal separation technology (with holes),reduce the driver temperature
8. E26/E27/E39/E40 base available
Pring LOGO on the base light), parks, factories, markets,courtyard,office building,lobbies and for other commercial lighting usage.
