120W High Power Led Street Light

Model: BW-B011204
Place of Origin: Zhejiang,China (Mainland)
Work voltage: AC90-305V
Power Consumption: 120W
Luminous Flux: 10200lm
Beam Angle: 60*150° / 80*150°
Product size: 680*292*98mm
Installation Pipe Diameter: 65MM
Led Source: CREE
Lifepan: 30000-50000H
IP Grade: IP65

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOBProduction Capacity:10000pcs/month
Payment Terms:L/C, T/TDelivery Date:15-25days
Min. Order:10 Piece/Pieces
Means of Transport:Ocean, Air

--------Model No: BW-B011204

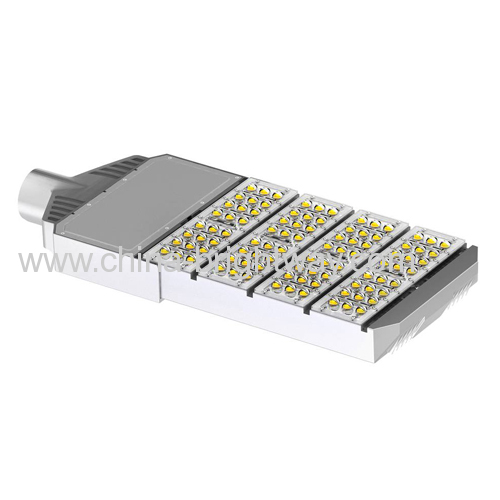

--------Product name: Aluminum 120W High Power Led Street Light With Meanwell Power Supply

--------Picture of Aluminum 120W High Power Led Street Light With Meanwell Power Supply

--------Specifications: 120W High Power Led Street Light


LED  TypeCree high power
LED Quantity(PCS)96*1W
Voltage (V)90-305V
Wattage (W)120W
Ra Index≥80
HOT Luminous  Flux(lm)10200LM
Colour Temp5500-6000K/2800-3200K
Life Time30000-50000H

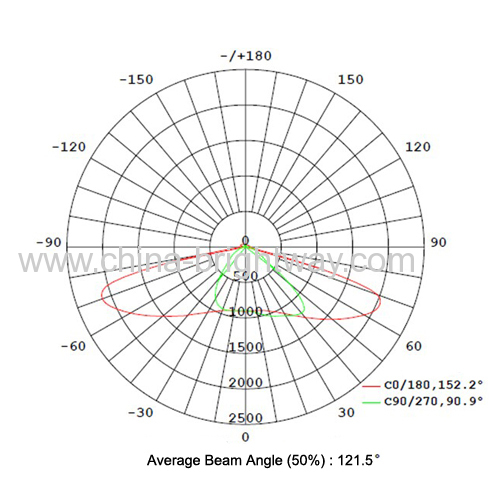

Lateral beam angle150°
Longitudinal beam angle60° / 80°
Installation Pipe Diameter65mm

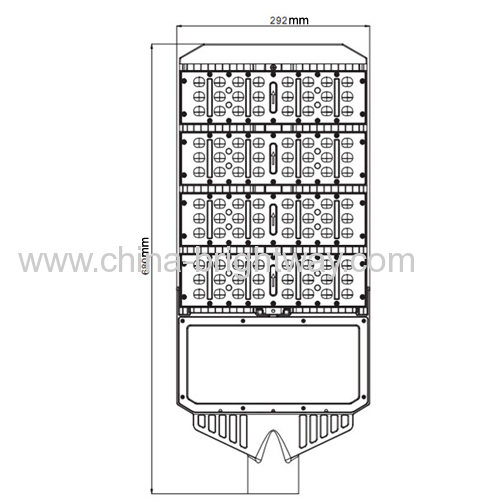

Size680*292*98mm
IP GradeIP65

--------Features


1. More cooling fins in the back to increase heat area effectively, fast heat dissipation to delay long life of LEDs quality
2. Be able to operate in high temperature,moist environment and other severe environment like that, and won't be corroded
3. Green environmental protection, with no lead or mercury
4. CE approval, IP65 Waterproof, Three to two Years Warranty
5. We also have more other style available (40W-190W). Different Beam angle for available.

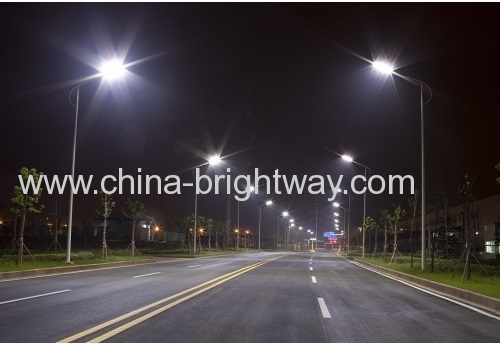

--------Application

1. High way lighting

2. Garden lighting

3. Road lamp lighting

--------Attention

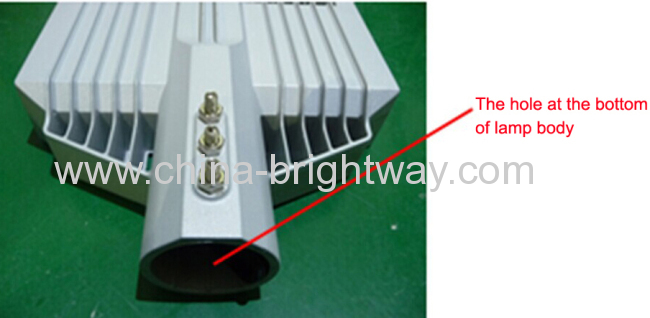

First step: the dia of hole is 65mm, Install the pole into the hole

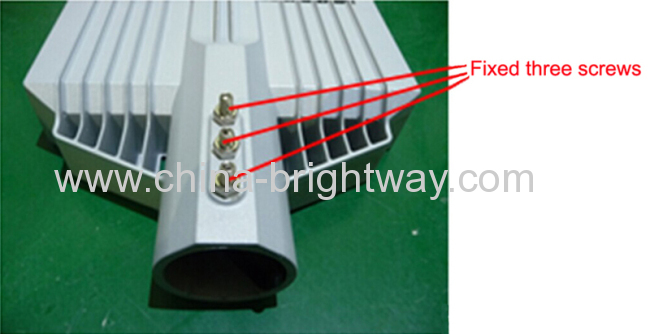

Second step: Fixed the three screws
