10mm thinkness Edgelit 300*600mm 20W 24W Led Panel Light

Model: BW-A121103
Place of Origin: Zhejiang,China (Mainland)
Brand Name: Brightway
Power: 20W , 24W
luminous flux: 60-70lm/W
Input Voltage: AC100-240V
Color tempreature: 3000K/4000K/6000K
Led type: 100pcs,120pcs SMD4014
CRI: >80 Ra
Power Factor: >0.90
Product Size: 300*600*10mm
Warranty: 2 years
Lifespan: >30.000hrs

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOBProduction Capacity:100000pcs/month
Payment Terms:L/C, T/TPacking:White box or Color box
Min. Order:1000 Piece/PiecesDelivery Date:15-25days
Means of Transport:Ocean, Air

--------Model No: BW-A121103

--------Product name: Aluminum Frame Edgelit 1*2ft 20W 24W Led Panel Light

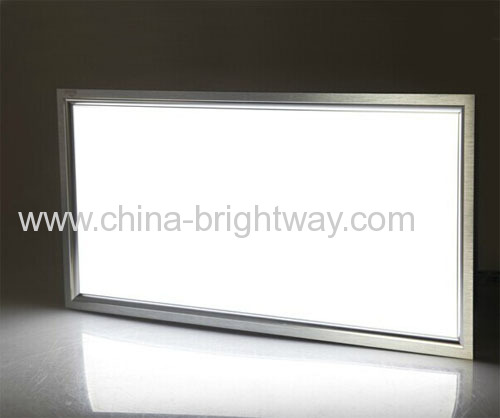

--------Picture of Aluminum Frame 1*2ft Led Panel Light

--------Specifications: 300*600mm 20W 24W Led Panel Light

           Size    Power       Led type    Light source Light Guide Plate
  300*600*10mm     20W 100pcs SMD4014    two edgelit          2.6mm
  300*600*10mm     24W 120pcs SMD4014    two edgelit          2.6mm

Voltage : AC100-240V

Material : aluminum

Luminous Flux : 60-70lm/W

Color tempreature : 3000K/4000K/6000K

CRI>80

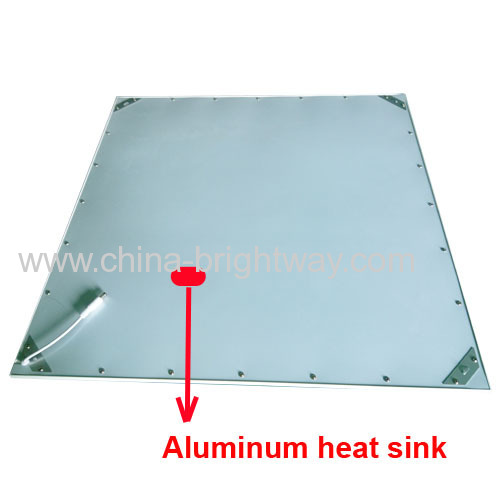

--------Picture of led panel light back sheet

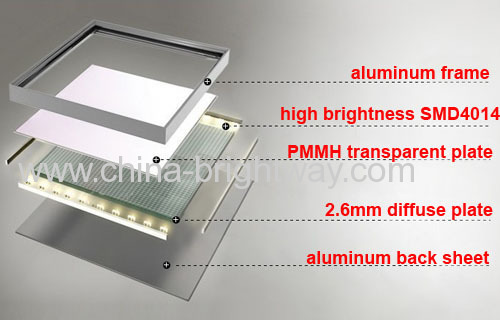

--------Picture ofthe structure of led panel light

--------Picture of accessories

--------Picture of edgelit light theory

--------Picture of installation

A:Embedded installation

B:By hanging kits

C:Recessed Installation(by spring)

--------Product feature:

1. Equipped with super bright LED as light source,it is powered by a low voltage constant current driver which is safe and energy saving and has a long life. The frame uses high quality cold rolled plate with plastic sprayding process. It is simple and elegant with ever lasting color.

2. High quality transparent PS board ensures soft and uniform light output,high lumen efficiency

3. Easy mounting,instant restart,no flicker,no noise,no glare,no lead,no mercury and other hazardous materials.

--------Application:

High CRI,High bright, Led Panel light is mainly applied to:hotel,confererence room, factories and offices,commercial,residential or public facilities,schools,hospitals,etc.
